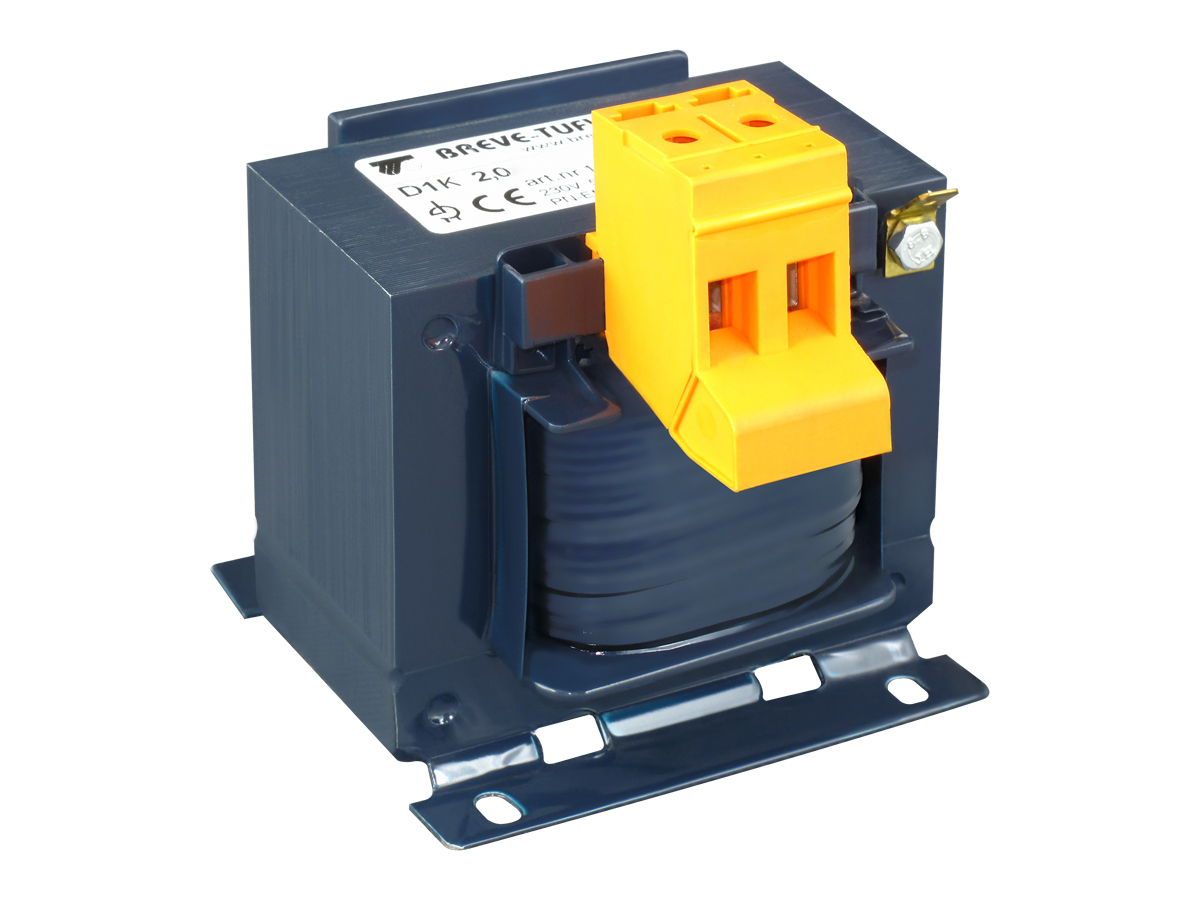

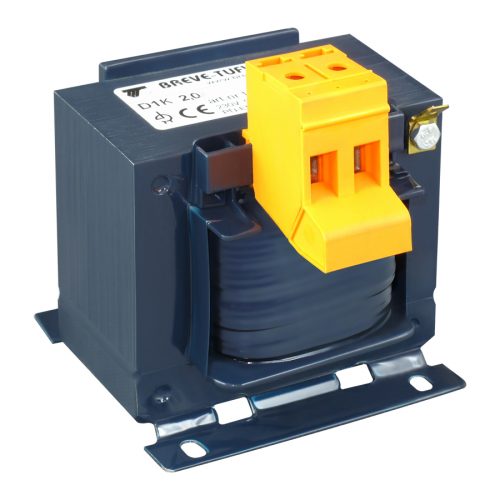

D1K - Single-phase compensation chokes

Compensation chokes designed to work in single-phase, converting power supply circuits in industrial applications. They limit commutation interactions, current build-up and higher harmonics in electrical network. They are made of magnetic cores with air gap, copper windings wound on a uniform insulating body, mounting bases and current terminals. Core welding and impregnation ensure high mechanical strength and climatic protection. Protection grade IP00, thermal class of insulation F (155°C), maximum ambient temperature 40°C. Manufactured in compliance with EN61558-2-20.

Working voltage: to 750V 50/60Hz
Insulation test voltage: 3000V 50Hz
Rated current: 4 – 150A
Inductance: 7,32 – 0,195mH

Guarantee
